4. 3D Scanning and Printing¶
group working¶
This week We did a group work in which we compare three 3D printing machines and describe the most important characteristics and most important characteristics of each of the machines via this link grop work
what i learned from testing the 3d printers¶
“I learned that every machine has its uses, simple and simple designs and easy to use at the speed of the machine, but its design does not end, but the design does not come out perfectly, it contains a lot of many flaws, and sometimes the whole design is distorted because of this speed, but also there are some machines that You work to the fullest, so you see that the time that was spent in preparing is worth all the trouble in the required manner and free from defects”
my work¶
I designed my own model and I used a YouTube video that explains in steps how we make a plane using a 3D printing machine.
CAD software, or Computer Aided Design software, lets you build 3D models on a computer which can then be 3D printed. Of course, these types of software are not only good for designing your prints but are also used for creating any kind of 3D element, be it for video games, animation, and more.
Once you’re done printing the free test prints that come with your printer, you generally download designs that other people made (you can use our own search engine to find amazing designs here). However, the ultimate challenge is to create them yourself using a CAD software, but this is definitely a lot harder to do than it may seem since 3D design can be quite complex.
scanning an opject¶

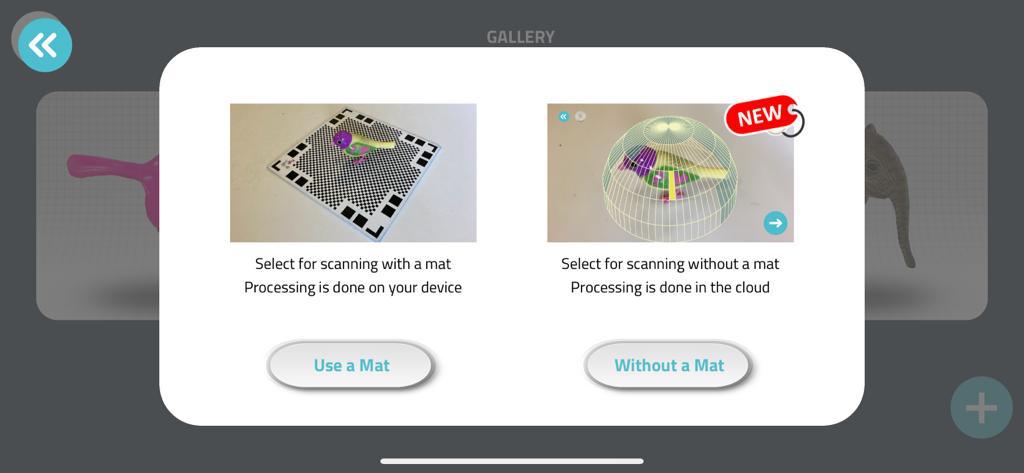

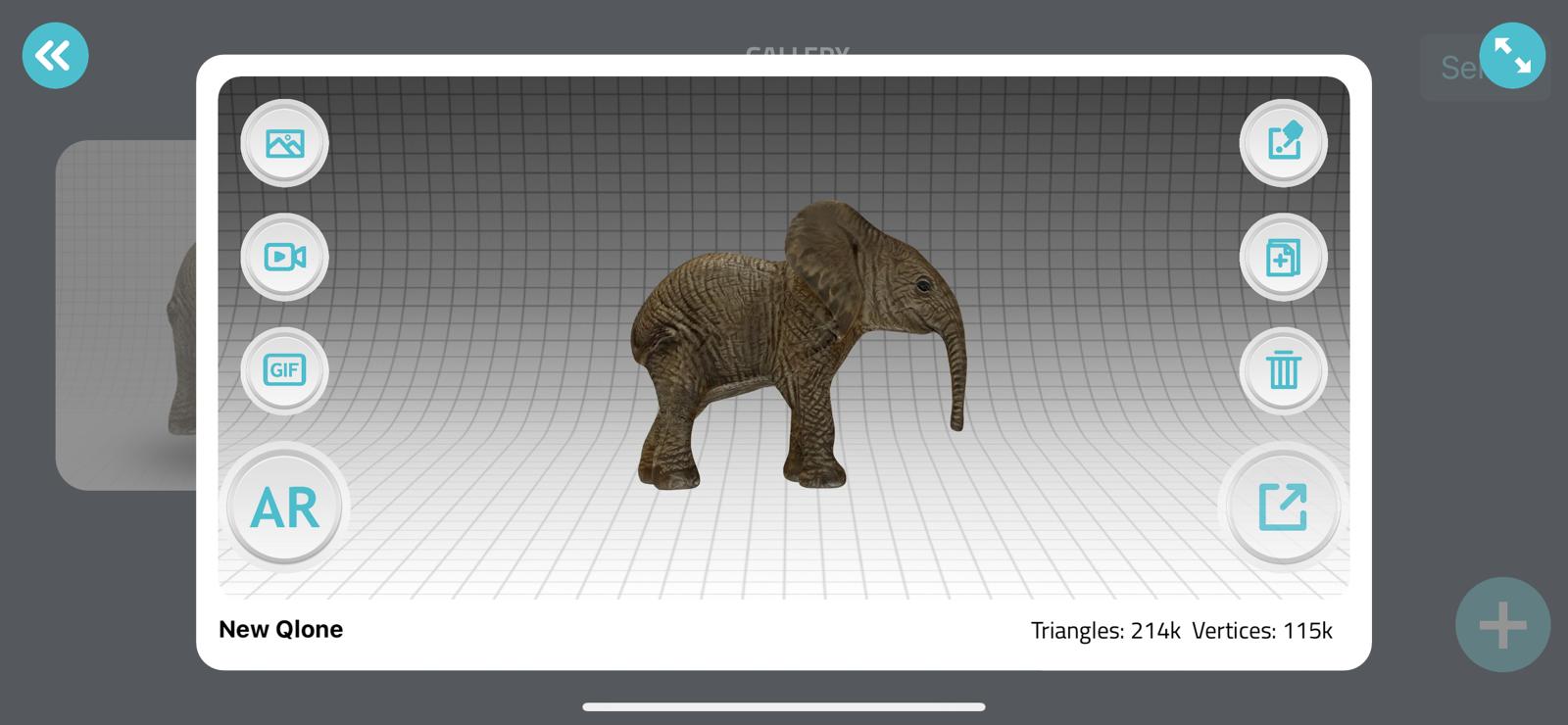

We scanned a stereo and used the method of rotation to be its circumference with all the statistics of the stereo and all its angles, then the shape of the stereo appeared to us with the special coordinates on the application, but we faced some problems as it requires stability and rotation at a slow speed, which took us a lot of time and Several attempts to capture the largest possible size of coordinates without forgetting any angle
here are some hero shots :
here are the dxf files: Download circuit components
